Total Stations
Reliable core measurement for real job-site conditions.
PRECISE T3 Lite pairs a high-tolerance absolute encoding angle system with long-range EDM and dual-axis compensation, built to keep measuring accurately through dust, moisture, and long working days, with Bluetooth 5.0 to connect the third-party field software your team already uses.
See It In Action
T3 Lite in the Field
PRECISE T3 Lite is a traditional mechanical total station built for reliable core measurement (angle, distance, and compensation) in a direct keypad-and-screen workflow. It's not a stripped-down T3: where T3 runs CAD on the instrument, T3 Lite pairs with third-party field apps over Bluetooth.
Challenge
Not every project needs a full onboard software platform; many just need a total station that keeps producing accurate angle and distance readings through a demanding job site: dust on a road cut, humidity in a tunnel, repeated setups over a long shift, without the reading drifting or the instrument struggling.
Solution
T3 Lite is built around that reliability requirement. Its absolute encoding angle system, combined with high-tolerance photoelectric decoding, is designed to keep reading angles accurately even when the encoding disc is partially obstructed by dust or condensation, a common failure point in tunnels and road work. A dual-axis compensator keeps that accuracy consistent through repeated setups and a full field day.
Value
Crews get dependable angle and distance results in the environments where instruments are most likely to struggle, using an operating style already familiar from traditional total stations, with the option to connect DiMap Pro, Surveyor, or another compatible app over Bluetooth when a job needs more.
Key Benefits
Why T3 Lite

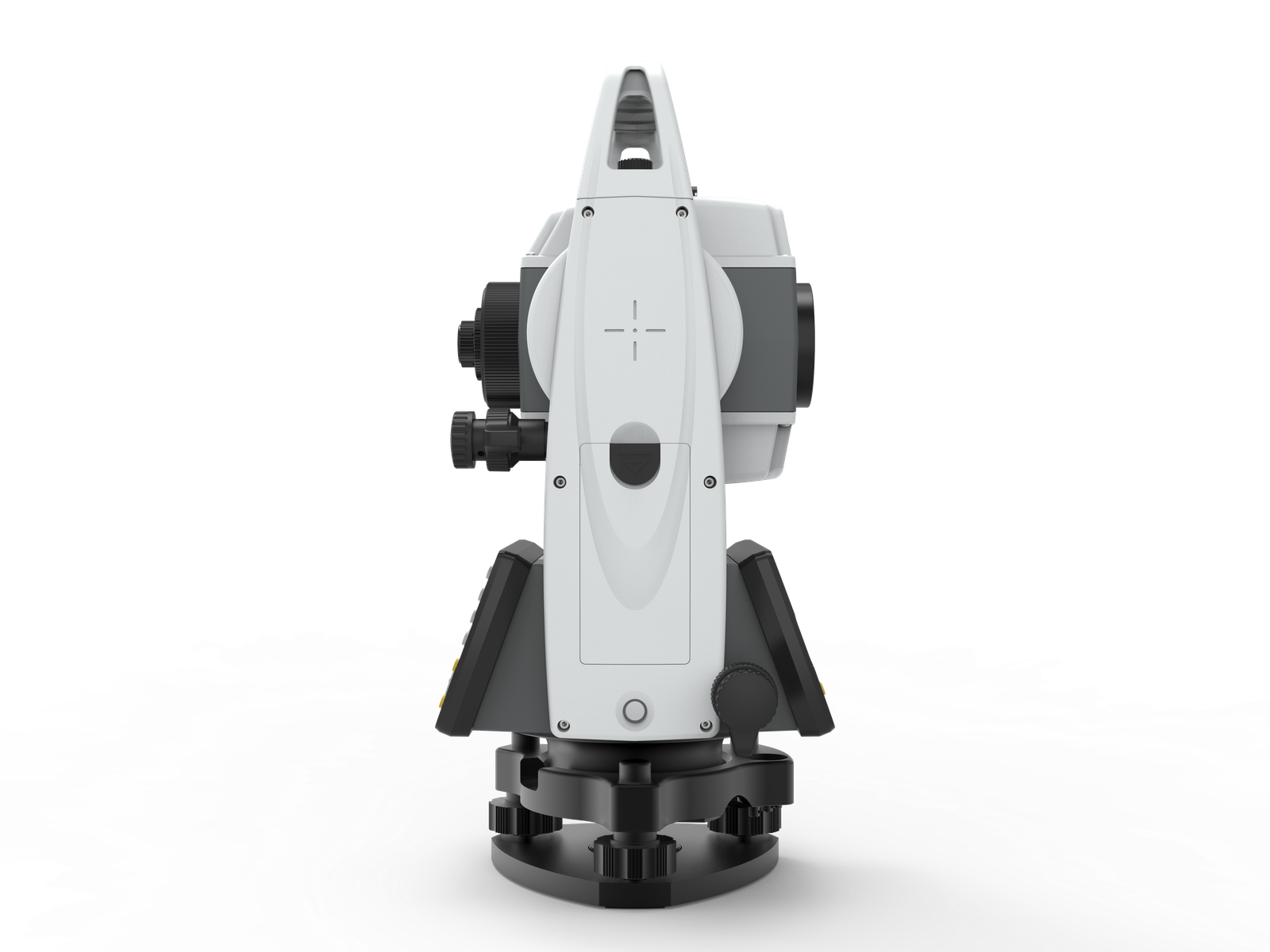

High-Tolerance Absolute Encoding
Angle Measurement That Holds Up in Dust and Moisture
Crews working in tunnels, dusty road corridors, or humid conditions get more consistent angle readings and fewer return trips caused by angle-related errors.
The absolute encoder reads position directly, and high-tolerance photoelectric decoding keeps reading correctly even when part of the disc is affected by dust or condensation.

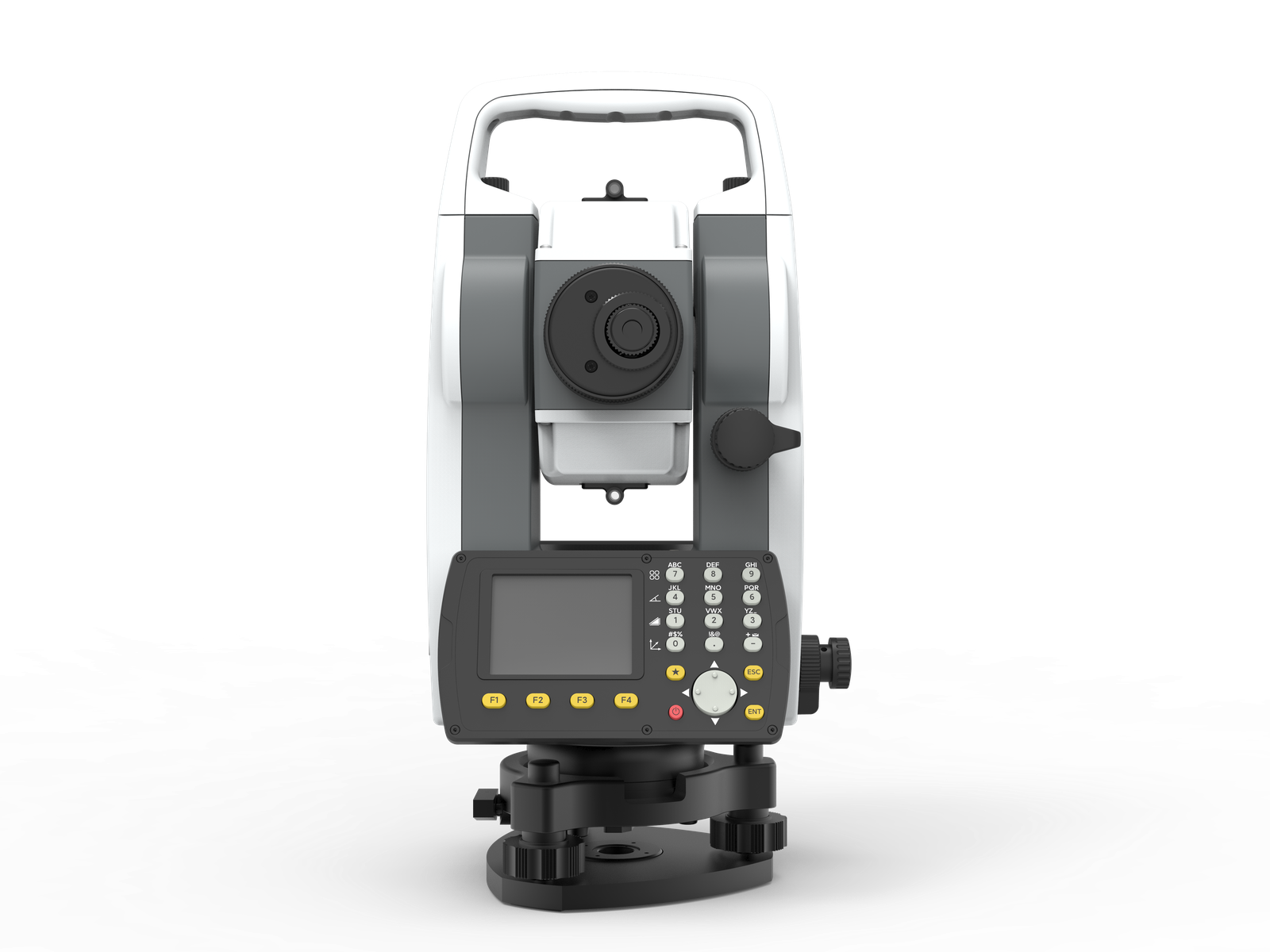

Multi-Range Distance Measurement
One Instrument for Close, Unreachable, and Long-Range Targets
A single T3 Lite covers close-range prism-free targets, mid-range reflector work, and long-range prism-based control work without switching instruments.
Rated maximum distances depend on target reflectivity, atmospheric conditions, and line-of-sight quality.

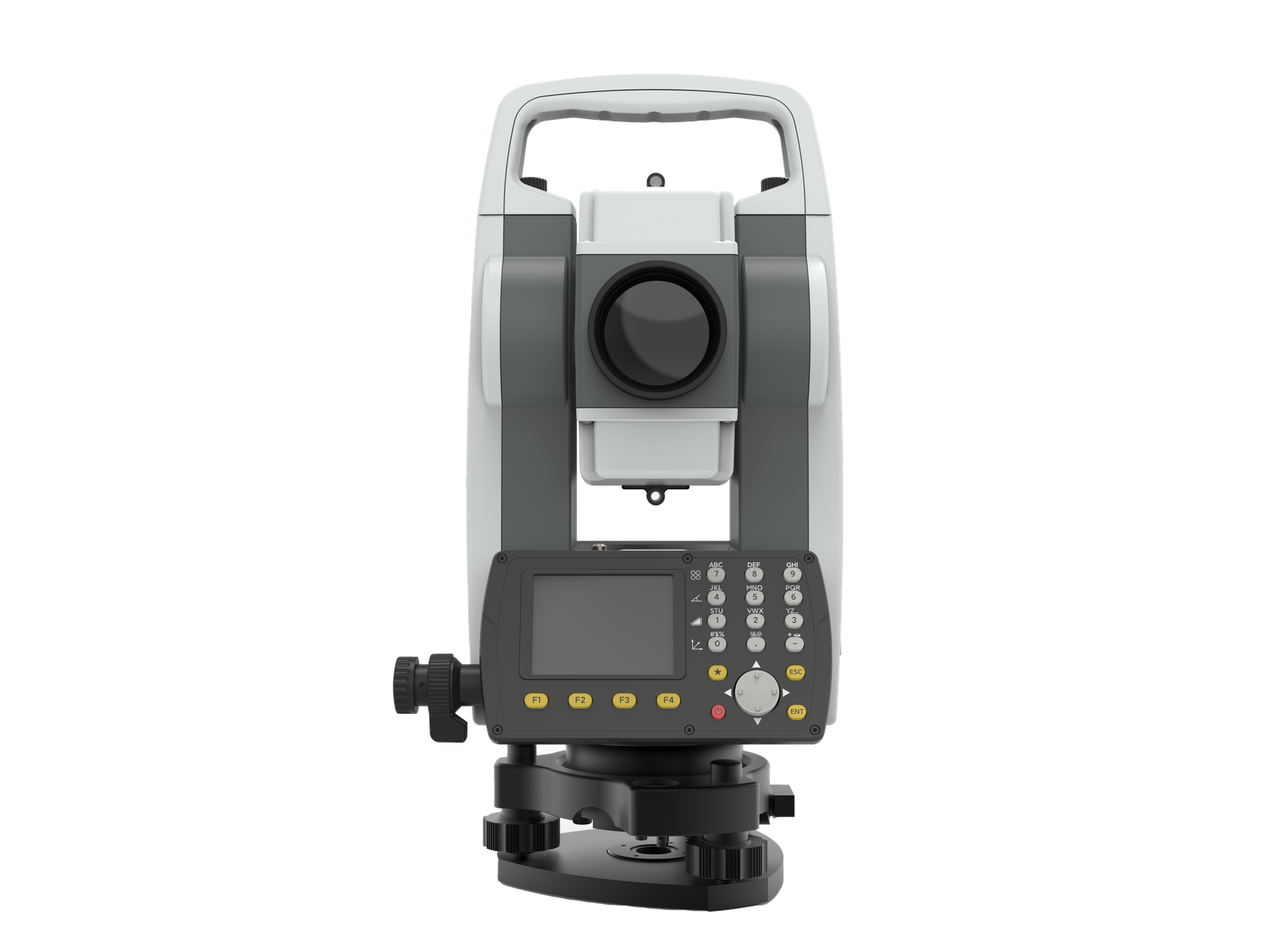

Coaxial Dual-Axis Compensation
Stable Readings Through a Full Day of Repeated Setups
Crews spend less time re-leveling between setups and get more consistent results across repeated measurements on road, bridge, and traverse work.
The compensator continuously corrects small leveling errors, rather than relying on a one-time manual level check.

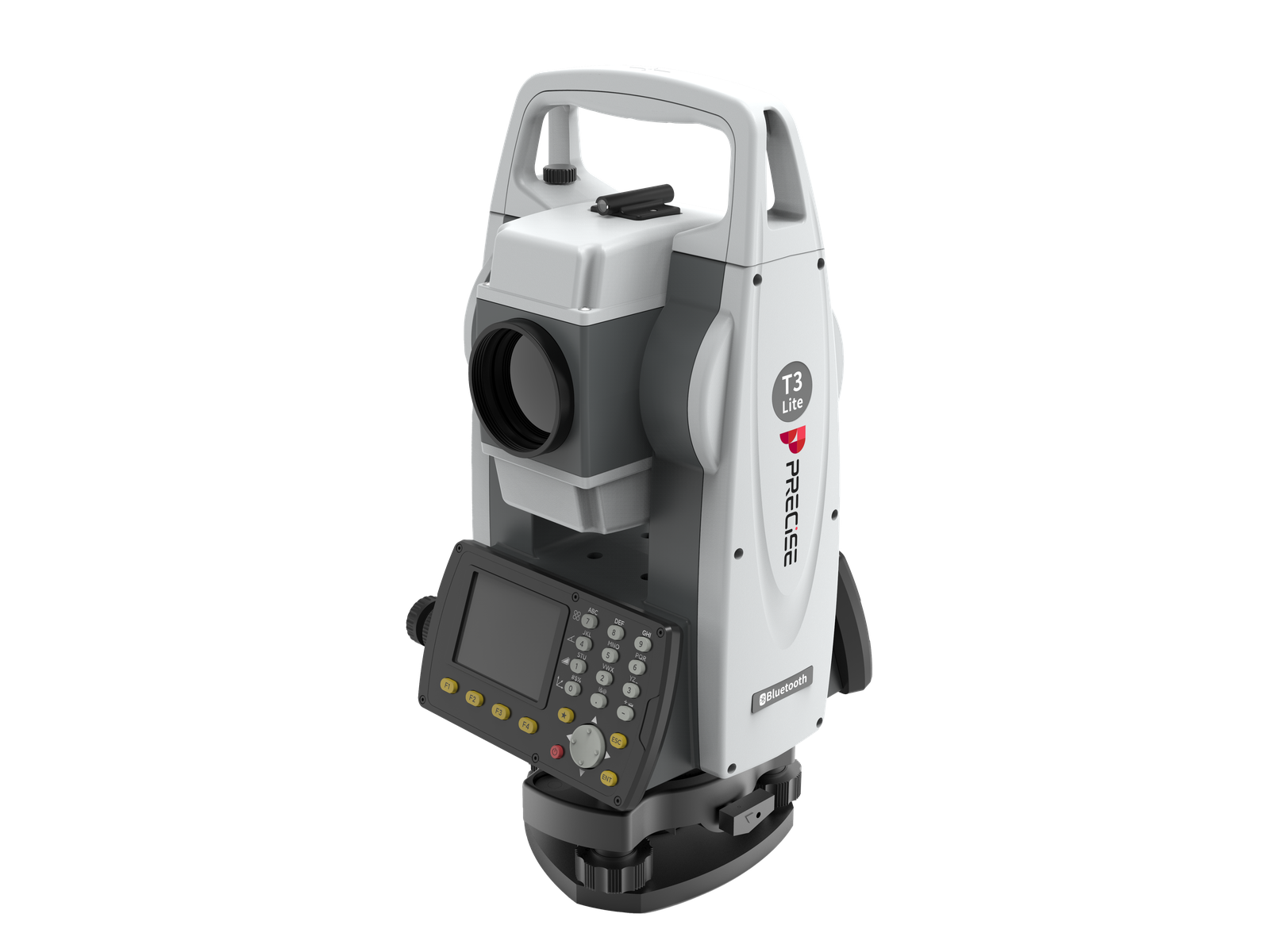

Keypad Interface + Bluetooth 5.0
A Familiar Operating Style, With Room to Add Software
Operators familiar with traditional total stations can pick up T3 Lite with minimal retraining, and teams standardized on a specific field app aren't forced onto a different platform.
Bluetooth 0.0
Wireless Connectivity Standard
Core measurement runs natively on the instrument; third-party apps like DiMap Pro or Surveyor connect over Bluetooth as an optional layer.
Applications
Where It's Used
Customers
What Our Customers Are Saying
Arif Rahman
Indonesia
“T3 Lite gives me the accuracy I need without stretching the budget. For road layout work, it's reliable even under heat and dust — a solid choice for everyday surveying.”
Daniela Rojas
Chile
“I switched to T3 Lite for small-team projects. The workflow feels lighter, and the battery easily lasts through a full day in the field. Great value for the price.”
Ahmed Al-Masri
United Arab Emirates
“We needed a reliable total station for construction staking without overspending. T3 Lite is surprisingly precise, and the angle reading stays consistent even in sandy conditions.”
Maria González
Philippines
“My crew learned T3 Lite in one morning. It's straightforward, accurate, and works perfectly for daily site marking. For small contractors, the value is unbeatable.”
Technical Highlights
Engineered Detail
High-tolerance absolute encoding angle system combines static absolute encoding with photoelectric decoding designed to remain functional even when part of the encoding disc is affected by dust or condensation.
Multi-range distance measurement 1,000 m prism-free, 2,000 m reflective sheet, and 4,000 m single prism, with fine/rapid/tracking modes (0.7 s / 0.5 s / 0.3 s).
Coaxial dual-axis compensation the ±4′ dual-axis compensator sits coaxially above the vertical axis, paired with a precision bearing system (G3-grade steel balls) to maintain angle stability through rotation and repeated setups.
Direct, familiar interaction a 3.2″ color screen, 26-key backlit keypad, and a customizable Fn function key built for gloved operation, low-light, and tunnel conditions.
One-touch laser centering aid a one-touch activation for rapid centering assistance; this is a centering aid, not automatic leveling or automatic centering.
Full-day power a 2,600 mAh Li-ion battery supports up to 25 hours of angle-only measurement or 20 hours of combined distance-and-angle measurement.
Bluetooth 5.0 third-party app connectivity connects to compatible field software such as DiMap Pro or Surveyor, with exact compatibility depending on the specific app, protocol, and version in use.
Technical Specifications
Full Spec Sheet
Telescope
Angle Measurement
Distance Measurement
Tilt Compensator
Laser Plummet
Power Supply
Panel & Environmental
How It Works
From Setup to Result
Set Up and Level
Use the laser plummet for centering assistance and the dual-axis compensator to correct for small leveling error as you level the instrument.
Sight the Target
Aim through the 30× telescope; choose prism-free, reflective sheet, or single-prism mode depending on the target and required range.
Measure
The absolute encoding angle system and EDM return angle and distance readings in fine (0.7 s), rapid (0.5 s), or tracking (0.3 s) mode, depending on whether you need precision or speed.
Record on the Instrument
Use the 3.2″ color screen, 26-key backlit panel, and customizable Fn key to run onboard measurement programs directly, without needing a connected device.
Connect Additional Software if Needed
Pair over Bluetooth 5.0 with a compatible third-party app such as DiMap Pro or Surveyor when a job needs more than the onboard programs provide.
FAQ
Common Questions
No. T3 and T3 Lite are two different instrument architectures, not a high/low price tier of the same platform. T3 runs a full Android measurement and CAD platform on the instrument itself. T3 Lite keeps core angle and distance measurement entirely on the instrument, in a traditional keypad-and-screen format, and connects to third-party field apps over Bluetooth when a project calls for more.
T3 Lite uses a static absolute encoding system with high-tolerance photoelectric decoding, designed to keep producing reliable angle readings even when part of the encoding disc surface is affected by dust or condensation, a common issue in tunnels and dusty road corridors. Real-world performance will vary with the extent and nature of contamination on a given site.
No. It's a one-touch laser centering aid: pressing the button activates the laser plummet to assist centering. The operator still performs leveling and centering; there is no automatic leveling or automatic centering function on T3 Lite.
T3 Lite connects over Bluetooth 5.0 to compatible third-party field applications, including DiMap Pro and Surveyor. Compatibility depends on the specific app, its communication protocol, and version, so confirm compatibility with your preferred software before relying on it for a project.
Yes, T3 Lite covers three distance modes: up to 1,000 m prism-free, 2,000 m to a reflective sheet, and 4,000 m to a single prism. Each mode trades off range, accuracy, and target requirements, and actual maximum range depends on target reflectivity, atmospheric conditions, and line-of-sight quality.
A single 2,600 mAh Li-ion battery supports up to 25 hours of angle-only measurement or 20 hours of combined distance-and-angle measurement, covering a full working day for most field schedules.
T3 Lite is rated IP54, protecting against dust ingress and splashing water, with an operating range of −20°C to +50°C and storage range of −30°C to +55°C. IP54 does not mean the instrument is submersion-proof.
Get in Touch
Talk to PRECISE About T3 Lite
Tell us about your project and we'll route it to the right PRECISE team.
- Sales: sales@precise-geo.com
- Support: support@precise-geo.com
Reliable measurement, built for the job site you actually work on.
Tell us about your project environment (dust, tunnels, long-range control work, or daily layout) and a PRECISE engineer will help you confirm whether T3 Lite's direct, dependable workflow fits, or whether T3's onboard Android platform is the better match.
